International Municipal Signal Association(IMSA Series)
- IMSA 19-1(Traffic Signal Cable)
Application and Description :
- These cables are suitable for outdoor or indoor use in traffic signal, traffic control systems, fire alarm
systems, underground conduit and aerial use with messenger. Rated for 600 Volts 75°C wet or dry
locations.
-
- Conductor: Solid bare copper per ASTM B-3 or stranded bare copper per ASTM B-8, & B-174
- Insulation: High density polyethylene (HDPE)
- Sheath: Black polyvinyl chloride (PVC) -
Conductor
No.Insulation Color Stripe
ColorConductor
No.Insulation Color Stripe
Color1 Black – 14 Green White 2 White – 15 Blue White 3 Red – 16 Black Red 4 Green – 17 White Red 5 Orange – 18 Orange Red 6 Blue – 19 Blue Red 7 White Black 20 Red Green 8 Red Black 21 Orange Green 9 Green Black 22 Black – 10 Orange Black 23 White – 11 Blue Black 24 Red – 12 Black White 25 Green – 13 Red White -
Temperature Rating:
- 75°C
-
Voltage Rating:
- 600 V

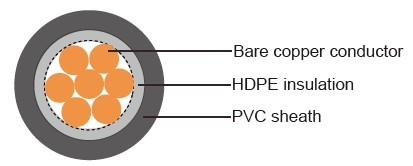

Cable Construction: :
Color Code :
Cable Parameter :
-
AWG No.
of
ConductorSolid or Stranded Insulation Thickness Sheath thickness Overall Diameter Cable Weight inches mm inches mm inches mm Lbs./ Kft Kg/Km 14 2 solid 0.025 0.64 0.045 1.14 0.325 8.26 58 86 14 2 7strand 0.025 0.64 0.045 1.14 0.341 8.66 63 94 14 3 solid 0.025 0.64 0.045 1.14 0.342 8.69 75 112 14 3 7strand 0.025 0.64 0.045 1.14 0.357 9.07 81 121 14 4 solid 0.025 0.64 0.045 1.14 0.372 9.45 94 140 14 4 7strand 0.025 0.64 0.045 1.14 0.389 9.89 98 146 14 5 solid 0.025 0.64 0.045 1.14 0.406 10.31 113 168 14 5 7strand 0.025 0.64 0.045 1.14 0.42 10.67 113 168 14 7 solid 0.025 0.64 0.045 1.14 0.44 11.18 146 217 14 7 7strand 0.025 0.64 0.045 1.14 0.464 11.79 154 229 14 9 solid 0.025 0.64 0.045 1.14 0.511 12.98 186 277 14 9 7strand 0.025 0.64 0.06 1.52 0.571 14.50 212 315 14 10 solid 0.025 0.64 0.06 1.52 0.586 14.88 220 327 14 10 7strand 0.025 0.64 0.06 1.52 0.586 14.88 227 338 14 11 7strand 0.025 0.64 0.06 1.52 0.618 15.70 250 372 14 12 solid 0.025 0.64 0.06 1.52 0.603 15.31 254 378 14 12 7strand 0.025 0.64 0.06 1.52 0.636 16.15 267 397 14 14 7strand 0.025 0.64 0.06 1.52 0.668 16.97 304 452 14 15 solid 0.025 0.64 0.06 1.52 0.667 16.94 311 463 14 15 7strand 0.025 0.64 0.06 1.52 0.704 17.88 328 488 14 16 solid 0.025 0.64 0.06 1.52 0.667 16.94 325 484 14 16 7strand 0.025 0.64 0.06 1.52 0.704 17.88 341 507 14 19 solid 0.025 0.64 0.06 1.52 0.701 17.81 375 558 14 19 7strand 0.025 0.64 0.06 1.52 0.741 18.82 393 585 14 20 solid 0.025 0.64 0.06 1.52 0.737 18.72 395 588 14 20 7strand 0.025 0.64 0.06 1.52 0.779 19.79 415 617 14 21 7strand 0.025 0.64 0.06 1.52 0.779 19.79 432 643 14 25 solid 0.025 0.64 0.06 1.52 0.796 20.22 478 711 14 25 7strand 0.025 0.64 0.08 1.52 0.918 23.32 544 809 12 2 solid 0.03 0.76 0.045 1.14 0.382 9.70 58 86 12 2 7strand 0.03 0.76 0.045 1.14 0.397 10.08 87 129 12 3 solid 0.03 0.76 0.045 1.14 0.398 10.11 108 161 12 3 7strand 0.03 0.76 0.045 1.14 0.42 10.67 113 168 12 4 solid 0.03 0.76 0.045 1.14 0.439 11.15 135 201 12 4 7strand 0.03 0.76 0.045 1.14 0.459 11.66 141 210 12 5 solid 0.03 0.76 0.045 1.14 0.48 12.19 163 243 12 5 7strand 0.03 0.76 0.045 1.14 0.503 12.78 172 256 12 7 solid 0.03 0.76 0.06 1.52 0.555 14.10 237 353 12 7 7strand 0.03 0.76 0.06 1.52 0.579 14.71 244 363 12 9 solid 0.03 0.76 0.06 1.52 0.64 16.26 281 418 12 9 7strand 0.03 0.76 0.06 1.52 0.673 17.09 310 461 12 10 7strand 0.03 0.76 0.06 1.52 0.726 18.44 338 503 12 12 solid 0.03 0.76 0.06 1.52 0.711 18.06 372 553 12 12 7strand 0.03 0.76 0.06 1.52 0.753 19.13 393 585 12 16 solid 0.03 0.76 0.06 1.52 0.793 20.14 449 668 12 19 7strand 0.03 0.76 0.08 2.03 0.918 23.32 625 930 12 20 solid 0.03 0.76 0.08 2.03 0.922 23.42 631 939 10 2 solid 0.031 0.79 0.045 1.14 0.421 10.70 110 164 10 2 7strand 0.031 0.79 0.045 1.14 0.443 11.25 118 176 10 3 solid 0.031 0.79 0.045 1.14 0.445 11.30 150 223 10 3 7strand 0.031 0.79 0.045 1.14 0.469 11.91 155 231 10 4 7strand 0.031 0.79 0.06 1.52 0.542 13.77 216 321 10 5 7strand 0.031 0.79 0.06 1.52 0.596 15.14 263 391
