International Municipal Signal Association(IMSA Series)

• IMSA 19-6/20-6(Signal & Communications Cable)

Application and Description :

• These cables are designed for use in underground conduit or as aerial cable supported by a messenger, or for direct earth burial either as fire protective signaling cable or as traffic signal cable.

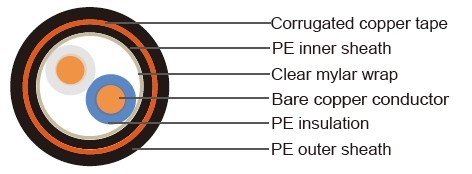

Cable Construction: :

• - Conductor: Solid bare copper per ASTM B-3(stranded copper is optional) - Insulation: Polyethylene(PE) - Pairing: Two insulated conductors twisted together - Binder tape: Clear mylar wrap – 100% coverage - Inner sheath: Polyethylene(PE) - Shield: Corrugated copper tape- 15% minimum overlap - Outer sheath: IMSA 19-2-Black Polyvinyl chloride (PVC)/ IMSA 20-2-Black Polyethylene(PE)

Color Code :

• Conductor No.	Insulation Color		Conductor No.	Insulation Color
  	A wire	B wire		A wire	B wire
  1	White	Blue	14	Black	Brown
  2	White	Orange	15	Black	Slate
  3	White	Green	16	Yellow	Blue
  4	White	Brown	17	Yellow	Orange
  5	White	Slate	18	Yellow	Green
  6	Red	Blue	19	Yellow	Brown
  7	Red	Orange	20	Yellow	Slate
  8	Red	Green	21	Violet	Blue
  9	Red	Brown	22	Violet	Orange
  10	Red	Slate	23	Violet	Green
  11	Black	Blue	24	Violet	Brown
  12	Black	Orange	25	Violet	Slate
  13	Black	Green

  Binding Tape Color Code: cables containing more than 25 pairs are assembled insub-sectors/
  groups. These are identified by spirally applied color-coded nonhygroscopicbinding tapes. The binding
  tapes use the same 25 pair color code.

• Temperature Rating:


• 75°C

• Voltage Rating:

• 600 V

Cable Parameter :

• AWG	No. of Pairs	Solid or Stranded	Insulation Thickness		Inner Sheath thickness		Outer Sheath thickness		Overall Diameter		Cable Weight
  			inches	mm	inches	mm	inches	mm	inches	mm	Lbs./ Kft	Kg/Km
  14	2	Solid	0.025	0.64	0.045	1.14	0.06	1.52	0.685	17.40	196	292
  14	4	Solid	0.025	0.64	0.045	1.14	0.06	1.52	0.77	19.56	254	378
  14	6	Solid	0.025	0.64	0.045	1.14	0.08	2.03	0.96	24.38	367	546
  14	8	Solid	0.025	0.64	0.045	1.14	0.08	2.03	1.015	25.78	440	655
  16	3	Solid	0.025	0.64	0.045	1.14	0.06	1.52	0.66	16.76	166	247
  16	6	Solid	0.025	0.64	0.045	1.14	0.06	1.52	0.83	21.08	261	388
  16	12	Solid	0.025	0.64	0.045	1.14	0.06	1.52	1.09	27.69	459	683
  16	18	Solid	0.025	0.64	0.06	1.52	0.08	2.03	1.25	31.75	646	961
  16	25	Solid	0.025	0.64	0.06	1.52	0.08	2.03	1.41	35.81	836	1244
  16	50	Solid	0.025	0.64	0.075	1.91	0.11	2.79	2.015	51.18	1618	2408
