International Municipal Signal Association(IMSA Series)

• IMSA 20-1(Traffic Signal Cable)

Application and Description :

• These cables are suitable for outdoor or indoor use in traffic signal, traffic control systems, fire alarm
  systems, underground conduit and aerial use with messenger. Rated for 600 Volts 75°C wet or dry
  locations.

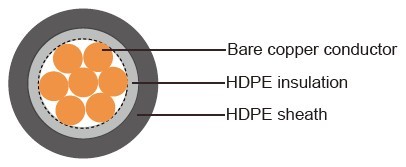

Cable Construction: :

• - Conductor: Solid bare copper per ASTM B-3 or stranded bare copper per ASTM B-8, & B-174 - Insulation: High density polyethylene (HDPE) - Sheath: High density polyethylene (HDPE)

Color Code :

• Conductor No.	Insulation Color	Stripe Color	Conductor No.	Insulation Color	Stripe Color
  1	Black	–	14	Green	White
  2	White	–	15	Blue	White
  3	Red	–	16	Black	Red
  4	Green	–	17	White	Red
  5	Orange	–	18	Orange	Red
  6	Blue	–	19	Blue	Red
  7	White	Black	20	Red	Green
  8	Red	Black	21	Orange	Green
  9	Green	Black	22	Black	–
  10	Orange	Black	23	White	–
  11	Blue	Black	24	Red	–
  12	Black	White	25	Green	–
  13	Red	White

• Temperature Rating:


• 75°C

• Voltage Rating:

• 600 V

Cable Parameter :

• AWG	No. of Conductor	Solid or Stranded	Insulation Thickness		Sheath thickness		Overall Diameter		Cable Weight
  			inches	mm	inches	mm	inches	mm	Lbs./ Kft	Kg/Km
  18	5	7strand	0.025	0.64	0.045	1.14	0.354	8.99	60	89
  16	2	solid	0.025	0.64	0.045	1.14	0.299	7.59	39	58
  16	7	7strand	0.025	0.64	0.045	1.14	0.419	10.64	102	152
  16	20	7strand	0.025	0.64	0.06	1.52	0.696	17.68	278	414
  14	2	solid	0.025	0.64	0.045	1.14	0.25	6.35	52	77
  14	2	7strand	0.025	0.64	0.045	1.14	0.341	8.66	55	82
  14	3	solid	0.025	0.64	0.045	1.14	0.342	8.69	66	98
  14	3	7strand	0.025	0.64	0.045	1.14	0.359	9.12	71	106
  14	4	solid	0.025	0.64	0.045	1.14	0.372	9.45	85	126
  14	4	7strand	0.025	0.64	0.045	1.14	0.391	9.93	88	131
  14	5	solid	0.025	0.64	0.045	1.14	0.406	10.31	103	153
  14	5	7strand	0.025	0.64	0.045	1.14	0.43	10.92	108	161
  14	6	solid	0.025	0.64	0.045	1.14	0.44	11.18	118	176
  14	6	7strand	0.025	0.64	0.045	1.14	0.464	11.79	127	189
  14	7	solid	0.025	0.64	0.045	1.14	0.44	11.18	136	202
  14	7	7strand	0.025	0.64	0.045	1.14	0.464	11.79	141	210
  14	8	solid	0.025	0.64	0.045	1.14	0.476	12.09	155	231
  14	8	7strand	0.025	0.64	0.045	1.14	0.507	12.88	160	238
  14	9	solid	0.025	0.64	0.045	1.14	0.511	12.98	172	256
  14	9	7strand	0.025	0.64	0.06	1.52	0.571	14.50	192	286
  14	10	solid	0.025	0.64	0.06	1.52	0.586	14.88	197	293
  14	10	7strand	0.025	0.64	0.06	1.52	0.592	15.04	205	305
  14	12	solid	0.025	0.64	0.06	1.52	0.603	15.32	232	345
  14	12	7strand	0.025	0.64	0.06	1.52	0.636	16.15	244	363
  14	14	7strand	0.025	0.64	0.06	1.52	0.668	16.97	280	417
  14	15	solid	0.025	0.64	0.06	1.52	0.667	16.94	284	423
  14	15	7strand	0.025	0.64	0.06	1.52	0.704	17.88	302	449
  14	16	solid	0.025	0.64	0.06	1.52	0.667	16.94	299	445
  14	16	7strand	0.025	0.64	0.06	1.52	0.704	17.88	316	470
  14	19	solid	0.025	0.64	0.06	1.52	0.701	17.81	348	518
  14	19	7strand	0.025	0.64	0.06	1.52	0.741	18.82	366	545
  14	20	solid	0.025	0.64	0.06	1.52	0.737	18.72	370	550
  14	20	7strand	0.025	0.64	0.06	1.52	0.779	19.79	387	576
  14	21	solid	0.025	0.64	0.06	1.52	0.737	18.72	384	571
  14	21	7strand	0.025	0.64	0.06	1.52	0.779	19.79	405	603
  14	25	solid	0.025	0.64	0.06	1.52	0.796	20.22	450	670
  14	25	7strand	0.025	0.64	0.08	1.52	0.925	23.50	518	771
  12	2	solid	0.03	0.76	0.045	1.14	0.384	9.75	74	110
  12	2	7strand	0.03	0.76	0.045	1.14	0.397	10.08	74	110
  12	3	solid	0.03	0.76	0.045	1.14	0.402	10.21	99	147
  12	3	7strand	0.03	0.76	0.045	1.14	0.42	10.67	103	153
  12	4	solid	0.03	0.76	0.045	1.14	0.44	11.18	124	184
  12	4	7strand	0.03	0.76	0.045	1.14	0.459	11.66	130	193
  12	5	solid	0.03	0.76	0.045	1.14	0.48	12.19	152	226
  12	5	7strand	0.03	0.76	0.045	1.14	0.503	12.78	159	237
  12	7	solid	0.03	0.76	0.06	1.52	0.561	14.25	212	315
  12	7	7strand	0.03	0.76	0.06	1.52	0.579	14.71	222	330
  12	9	7strand	0.03	0.76	0.06	1.52	0.677	17.20	284	423
  12	10	solid	0.03	0.76	0.06	1.52	0.69	17.52	296	440
  12	10	7strand	0.03	0.76	0.06	1.52	0.686	17.42	309	460
  12	12	solid	0.03	0.76	0.06	1.52	0.711	18.06	346	515
  12	12	7strand	0.03	0.76	0.06	1.52	0.753	19.13	367	546
  12	16	7strand	0.03	0.76	0.08	2.03	0.876	22.25	501	745
  12	19	7strand	0.03	0.76	0.08	2.03	0.929	23.60	582	866
  12	20	7strand	0.03	0.76	0.08	2.03	0.976	24.80	618	919
  12	21	7strand	0.03	0.76	0.08	2.03	0.976	24.80	643	957
  12	25	7strand	0.03	0.76	0.08	2.03	1.08	27.43	751	1117
  10	2	7strand	0.03	0.76	0.045	1.14	0.443	11.25	107	159
  10	3	solid	0.03	0.76	0.045	1.14	0.429	10.90	135	201
  10	4	7strand	0.03	0.76	0.045	1.14	0.514	13.06	185	275
  10	7	7strand	0.03	0.76	0.06	1.52	0.648	16.46	321	478
  8	2	solid	0.03	0.76	0.045	1.14	0.475	12.07	146	217
  8	2	19strand	0.03	0.76	0.045	1.14	0.505	12.83	150	223
  8	3	19strand	0.03	0.76	0.045	1.14	0.508	12.90	195	290
  8	7	solid	0.03	0.76	0.06	1.52	0.696	17.68	454	675
