International Municipal Signal Association(IMSA Series)

• IMSA 50-2 (Traffic Loop Detector Lead- In Feeder Cable)

Application and Description :

• These cables are used in municipal signal systems as lead-in cable or for use in communication circuits where a low capacitance is needed, suitable for underground conduit, as aerial cable supported by messenger, or in raceways in buildings.

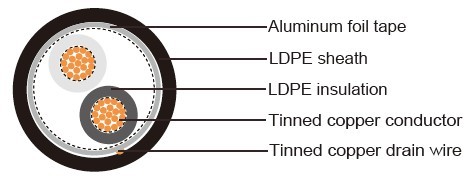

Cable Construction: :

• - Conductor: Stranded tinned copper per ASTM B-8 & B-33,18 – 12 AWG (19 Strand) - Insulation: Low density polyethylene (LDPE) - Color code: Black & clear - Pairing: Two insulated conductors twisted together - Shield: Aluminum foil shield with tinned copper drain wire - Sheath: Black low density polyethylene (LDPE)

• Temperature Rating:


• 75°C

• Voltage Rating:

• 600 V

Cable Parameter :

• AWG	No. of Conductor	Solid or Stranded	Insulation Thickness		Sheath thickness		Overall Diameter		Cable Weight
  			inches	mm	inches	mm	inches	mm	Lbs./ Kft	Kg/Km
  18	2	19strand	0.030	0.76	0.030	0.76	0.27	6.86	31	46
  16	2	19strand	0.030	0.76	0.030	0.76	0.29	7.37	40	60
  14	2	19strand	0.030	0.76	0.030	0.76	0.32	8.13	56	83
  12	2	19strand	0.030	0.76	0.030	0.76	0.364	9.25	80	119
