International Municipal Signal Association(IMSA Series)

• IMSA 51-5(Loop Detector Cable)

Application and Description :

• These cables are used in road pavements to detect vehicles for the purpose of changing signals or
  determining amount of traffic flow.

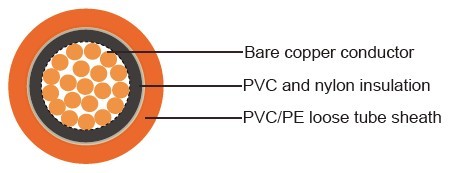

Cable Construction: :

• - Conductor: Stranded bare copper per ASTM B-8 - Insulation: PVC(15Mils)/Nylon(5Mils) - Sheath: PE or PVC loose Tube, black or orange

• Temperature Rating:


• 60°C

• Voltage Rating:

• 600 V

Cable Parameter :

• AWG	No. of Conductor	Solid or Stranded	Insulation Thickness		Sheath thickness		Overall Diameter		Cable Weight
  			inches	mm	inches	mm	inches	mm	Lbs./ Kft	Kg/Km
  PE tube
  14	1	19strand	0.02	0.51	0.030	0.76	0.18	4.57	22	33
  12	1	19strand	0.02	0.51	0.030	0.76	0.2	5.08	29	43
  PVC tube
  14	1	19strand	0.02	0.51	0.030	0.76	0.18	4.57	30	45
  12	1	19strand	0.02	0.51	0.030	0.76	0.2	5.08	36	54
