International Municipal Signal Association(IMSA Series)

• IMSA 51-7(Loop Detector Cable)

Application and Description :

• These cables are used in road pavements to detect vehicles for the purpose of changing signals or
  determining amount of traffic flow.

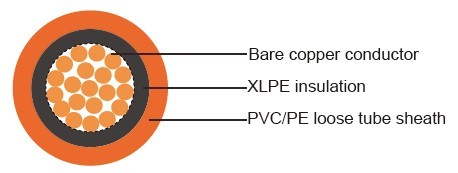

Cable Construction: :

• - Conductor: Stranded bare copper per ASTM B-8 - Insulation: Cross-linked polyethylene (XLPE) - Sheatht: PE or PVC loose tube, black or orange

• Temperature Rating:


• 60°C

• Voltage Rating:

• 600 V

Cable Parameter :

• AWG	No. of Conductor	Solid or Stranded	Insulation Thickness		Sheath thickness		Overall Diameter		Cable Weight
  			inches	mm	inches	mm	inches	mm	Lbs./ Kft	Kg/Km
  PE tube
  14	1	19strand	0.030	0.76	0.030	0.76	0.19	4.83	26	39
  12	1	19strand	0.030	0.76	0.030	0.76	0.22	5.59	31	46
  PVC tube
  14	1	19strand	0.030	0.76	0.030	0.76	0.19	4.83	31	46
  12	1	19strand	0.030	0.76	0.030	0.76	0.22	5.59	37	55
