British Standard Highway Cables

• Loop Detector Cable to BS6500 and BS6195

Application and Description :

• Loop Detector Cable is used to measure and control traffic flow. Typical applications are for traffic control signals, safety cameras, variable speed control systems, flow monitoring and access control.

• Standard and Approval:

  BS 6500, BS6195, BS 6360, BS 7655

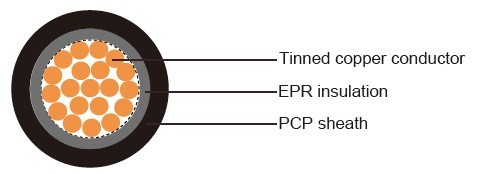

Cable Construction: :

- Conductor: Stranded tinned copper, comply with BS 6360, Class 5 - Insulation: Black ethylene propylene rubber insulated (EPR), GP1, comply with BS 7655 - Sheath: Polychloroprene (PCP) sheath - Sheath Colour: Blacke

• Technical Characteristics:


• - Rated voltage: 450/750 volts
  - Conductor Resistance at 20°C: 13.7ohms/km(1.5mm2}
  8.21 ohms/km(2.5mm2)
  - Minimum bending radius: 6 x Ø
  - Temperature range: -30º C - +85º C

Cable Parameter :

• Number of Cores	Nominal Conductor Area	Nominal Conductor Stranding	Insulation Thickness	Sheath Thickness	Nominal O/D	Approx Cable Weight
  	mm2	NO./mm	mm	mm	mm	Kg/km
  1	1.5	30/0.25	0.8	1.4	7.2	53.8
  1	2.5	50/0.25	2.1	-	6.4	62.8
