British Standard Highway Cables

• Loop Feeder Cable to BS6346

Application and Description :

• Loop Feeder Cable is used to connect traffic lights to the central control management system. The
  cables come in armoured, for direct burial, or unarmoured for applications where additional mechanical
  protection has been afforded by other means such as ducting. The Loop feeder cables are supplied in a
  highly visible orange for easy location of buried services. These cables are also suitable for use in small power, lighting or control circuits.

• Standard and Approval:

  BS 6346, BS 6360, BS 6234

Cable Construction: :

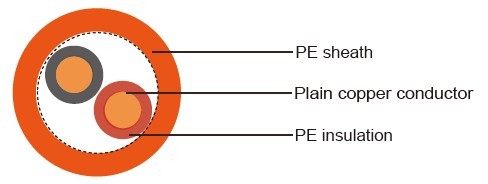

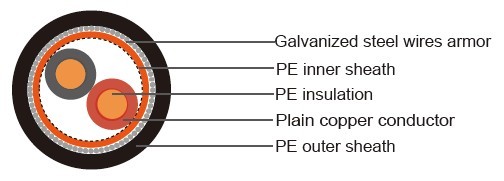

• - Conductor: Conductor: Solid plain annealed copper, comply with BS 6360, Class 1 - Insulation: Polythene (PE), comply with BS 6234, type 03 - Pairing: Two insulated conductors twisted together, four cores laid up as a quad - Bedding (for Armoured Cable Only): Polythene (PE), comply with BS 6234, type 03 - Armor (for Armoured Cable Only): Galvanized steel wires - Sheath: Polythene (PE), comply with BS 6234, type 03 - Sheath Colour: Orange

Core Identification :

• 1 pair – red, black
  2 pair –red, yellow, blue, black laid up in quad formation in order of rotation:

• Technical Characteristics:


• - Rated voltage: 600/Kft volts
  - Conductor Resistance: at 20°C: 12.1ohms/km(1.5mm2)
  7.41 ohms/km(2.5mm2)
  - Minimum bending radius: 7.5 x Ø
  - Temperature range: -20º C - +70º C
  - Loop inductance: 630μH/km(1P) 720μH/km(2P)
  - Capacitance:

  unarmored		armored
  1.5 mm2	2.5 mm2	1.5 mm2	2.5 mm2
  <75 pF/m	(1P)	<75 pF/m	64 pF/m (1P)
  	52 pF/m (2P)		53.5 pF/m (2P)

Cable Parameter :

• Number of Cores	Nominal Conductor Area	Nominal Conductor Stranding	Insulation Thickness	Bedding Thickness	Nominal diameter of armour wire	Sheath Thickness	Nominal O/D	Approx Cable Weight
  	mm2	NO./mm	mm	mm	mm	mm	mm	Kg/km
  Non armored cables
  2 (1pr)	1.5	1/1.38	0.64	-	-	1.3	9.0	80
  4 (2pr)	1.5	1/1.38	0.64	-	-	1.3	9.1	123
  2 (1pr)	2.5	1/1.78	0.74	-	-	1.4	9.3	110
  4 (2pr)	2.5	1/1.78	0.74	-	-	1.4	10.7	180
  Armored cables
  2 (1pr)	1.5	1/1.38	0.64	0.8	0.9	1.3	11.8	230
  4 (2pr)	1.5	1/1.38	0.64	0.8	0.9	1.3	12.7	295
  2 (1pr)	2.5	1/1.78	0.74	0.8	0.9	1.4	12.5	279
  4 (2pr)	2.5	1/1.78	0.74	0.8	0.9	1.4	15.0	378
