National Motorway Communications System Specifications(TR Series)

• TR2153- Non Armoured Energy Cable

Application and Description :

• TR2031 Non-armoured Energy Cable is a motorway cable sheathed with medium density polyethylene
  (MDPE) designed for street lighting.

Standard :

• IEC 60502

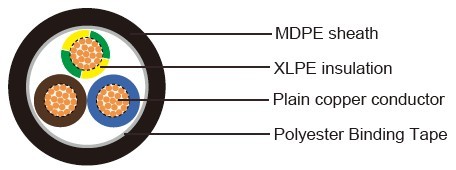

Cable Construction: :

• - Conductor: Plain annealed stranded copper conductor, comply with IEC 60228 for Class 2 - Insulation: Cross linked polyethylene (XLPE) - Core Identification: Brown, Blue, Green/Yellow - Tape: Polyester Binding Tape - Sheath: Medium density polyethylene (MDPE), comply with IEC 60708 - Sheath Color: Black

Technical Characteristics :

• - Rated voltage: 600/Kft volts
  - Minimum bending radius: 12 x Ø
  - Rated temperature: +90º C
  - Conductor resistance:

  Conductor size	mm2	10	25	35	50	70	95	120	150	185	240
  Resistance	ohms/ km	1.83	0.727	0.524	0.387	0.268	0.193	0.153	0.124	0.0991	0.0754

  - Current rating in duct:


  Conductor size	mm2	10	25	35	50	70	95	120	150	185	240
  Current rating	A	75	124	-	161	196	234	269	307	-	-

  - Volt drop :

  Conductor size	mm2	10	25	35	50	70	95	120	150	185	240
  Volt drop	mv/m	4.1	1.65	-	0.87	0.6	0.45	0.37	0.3	-	-

Cable Parameter :

• Number of Pairs	Nominal Conductor Area	Nominal Conductor Stranding	Insulation Thickness	Inner Sheath Thickness	Nominal O/D	Approx Cable Weight
  	mm2	NO./mm	mm	mm	mm	Kg/km
  3	10	7/1.35	0.7	0.8	13	455
  3	25	7/2.14	1.2	1.8	23	1192
  3	35	7/2.52	1.4	1.8	26	1623
  3	50	19/1.78	1.4	1.8	29	2180
  3	70	19/2.14	1.4	1.9	33	3072
  3	95	19/2.52	1.6	2.0	38	4220
  3	120	37/2.03	1.6	2.1	42	5302
  3	150	37/2.25	1.8	2.3	46	6515
  3	185	37/2.52	2.0	2.6	52	8173
  3	240	61/2.25	2.2	2.8	59	10705
