National Motorway Communications System Specifications(TR Series)

• TR2161-Armoured Energy Cable

Application and Description :

• TR2161 Non-armoured Energy Cable is a motorway cable sheathed with medium density polyethyylene
  (MDPE) designed for street lighting.

Standard :

• IEC 60502, BS 5467

Cable Construction: :

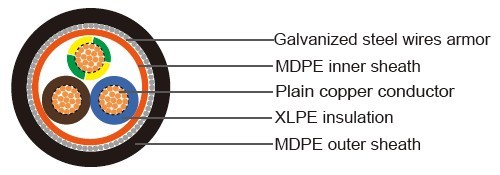

• - Conductor: Plain annealed stranded copper conductor, comply with IEC 60228 for Class 2 - Insulation: Cross linked polyethylene (XLPE) - Core Identification: Brown, Blue, Green/Yellow - Inner Sheath: Medium density polyethylene (MDPE), comply with IEC 60708. - Armor (for Armoured Cable Only): Galvanized steel wires - Outer Sheath: Medium density polyethylene (MDPE), comply with IEC 60708. - Sheath Color: Black

Technical Characteristics :

• - Rated voltage: 600/Kft volts
  - Minimum bending radius: 12 x Ø
  - Rated temperature: +90º C
  - Conductor resistance:

  Conductor size	mm2	10	25	50	70	95	120	150
  Resistance	ohms/ km	1.83	0.727	0.387	0.268	0.193	0.153	0.124

  - Current rating in duct:


  Conductor size	mm2	10	25	50	70	95	120	150
  Current rating	A	92	152	217	266	319	330	406

  - Volt drop :

  Conductor size	mm2	10	25	50	70	95	120	150
  Volt drop	mv/m	4.1	1.65	0.87	0.6	0.45	0.37	0.3

Cable Parameter :

• Number of Pairs	Nominal Conductor Area	Nominal Conductor Stranding	Inner Sheath Thickness	Armour thickness	Outer Sheath Thickness	Nominal O/D	Approx Cable Weight
  	mm2	NO./mm	mm	mm	mm	mm	Kg/km
  3	10	7/1.35	1.0	1.25	1.8	19.1	881
  3	25	7/2.14	1.0	1.60	1.8	24.9	1703
  3	50	19/1.78	1.0	1.60	2.0	30.7	2660
  3	70	19/2.14	1.0	1.60	2.0	34.6	3489
  3	95	19/2.52	1.2	2.0	2.2	40.7	4903
  3	120	37/2.03	1.2	2.0	2.3	44.4	5891
  3	150	37/2.25	1.4	2.5	2.5	50.0	7521
