British Standard Highway Cables

• Traffic Signal Cable to BS 6346

Application and Description :

• Traffic signal cable is used for the interconnection of traffic signal equipment or other applications
  requiring high core configurations with mechanical robustness.

• Standard and Approval:

  BS 6346, BS 6360, BS 7655

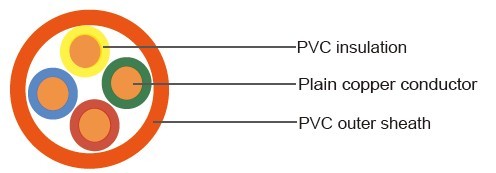

Cable Construction: :

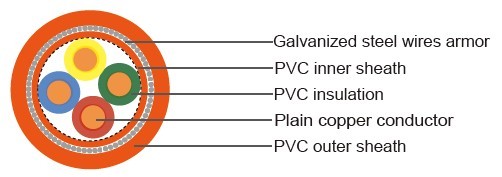

• - Conductor: Solid plain annealed copper, comply with BS 6360, Class 1 - Insulation: Polyvinyl chloride (PVC), TI1, comply with BS 7655 - Bedding(for Armoured Cable Only): Polyvinyl chloride (PVC) compound - Armor(for Armoured Cable Only): Galvanized steel wire armor - Sheath: Polyvinyl chloride (PVC), TM1, comply with BS7655 - Sheath color: Orange

Core Identification :

• 4 core - Red, Blue, Yellow, Green
  8 core - Brown, Yellow, Green, Red, White, Blue, Black, Orange
  12 core - Brown, Yellow, Green, Red, White, Blue, Black, Orange, Red/White, Grey, Red/Blue, Violet
  16 core - Brown, Yellow, Green, Red, White, Blue, Black, Orange, Red/White, Grey, Red/Blue, Violet,
  Brown/Red, Yellow/Red, Grey/Red, Black/Red
  20 core - Brown, Yellow, Green, Red, White, Blue, Black, Orange, Red/White, Grey, Red/Blue, Violet,
  Brown/Red, Yellow/Red, Grey/Red, Black/Red, Violet/Red, Orange/Red, Green/Red, Blue/White Binding Tape Color Code: cables containing more than 25 pairs are assembled insub-sectors/
  groups. These are identified by spirally applied color-coded nonhygroscopicbinding tapes. The binding
  tapes use the same 25 pair color code.

• Technical Characteristics:


• - Rated voltage: 600/Kft volts
  - Conductor Resistance: at 20°C: 18.1ohms/km(1.0mm2)
  12.1 ohms/km(1.5mm2)
  - Minimum bending radius: 6 x Ø
  - Temperature range: -15º C - +70º C
  - Short circuit temperature: 160ºC
  - Flame retardant: BS EN 60332-1-2

Cable Parameter :

• Number of Cores	Nominal Conductor Area	Nominal Conductor Stranding	Insulation Thickness	Bedding Thickness	Nominal diameter of armour wire	Sheath Thickness	Nominal O/D	Approx Cable Weight
  	mm2	NO./mm	mm	mm	mm	mm	mm	Kg/km
  Non armored cables
  8	1.0	1/1.13	0.63	-	-	1.4	12.6	218
  12	1.0	1/1.13	0.63	-	-	1.5	13.5	305
  8*	1.0	1/1.13	0.63	-	-	1.4	14.5	523
  Armored cables
  4	1.0	1/1.13	0.63	0.8	0.9	1.4	13.3	325
  8	1.0	1/1.13	0.63	0.8	0.9	1.4	15.6	413
  12	1.0	1/1.13	0.63	0.8	1.25	1.5	17.9	567
  16	1.0	1/1.13	0.63	0.8	1.25	1.5	19.9	774
  20	1.0	1/1.13	0.63	0.8	1.25	1.6	22.0	905
  4	1.5	1/1.38	0.63	0.8	0.9	1.4	12.5	363
  8	1.5	1/1.38	0.63	0.8	0.9	1.4	15.8	534
  12	1.5	1/1.38	0.63	0.8	1.25	1.5	18.5	704
  16	1.5	1/1.38	0.63	0.8	1.25	1.6	20.0	836
  20	1.5	1/1.38	0.63	0.8	1.25	1.6	21.5	1040
  8*	1.0	1/1.13	0.63	0.8	0.9	1.4	16.3	533

  * includes additional 6mm2 integral earth conductor
